Piston Groups
Aydın Trafo Piston Groups Are The Product of Over 50 Years of Experience!

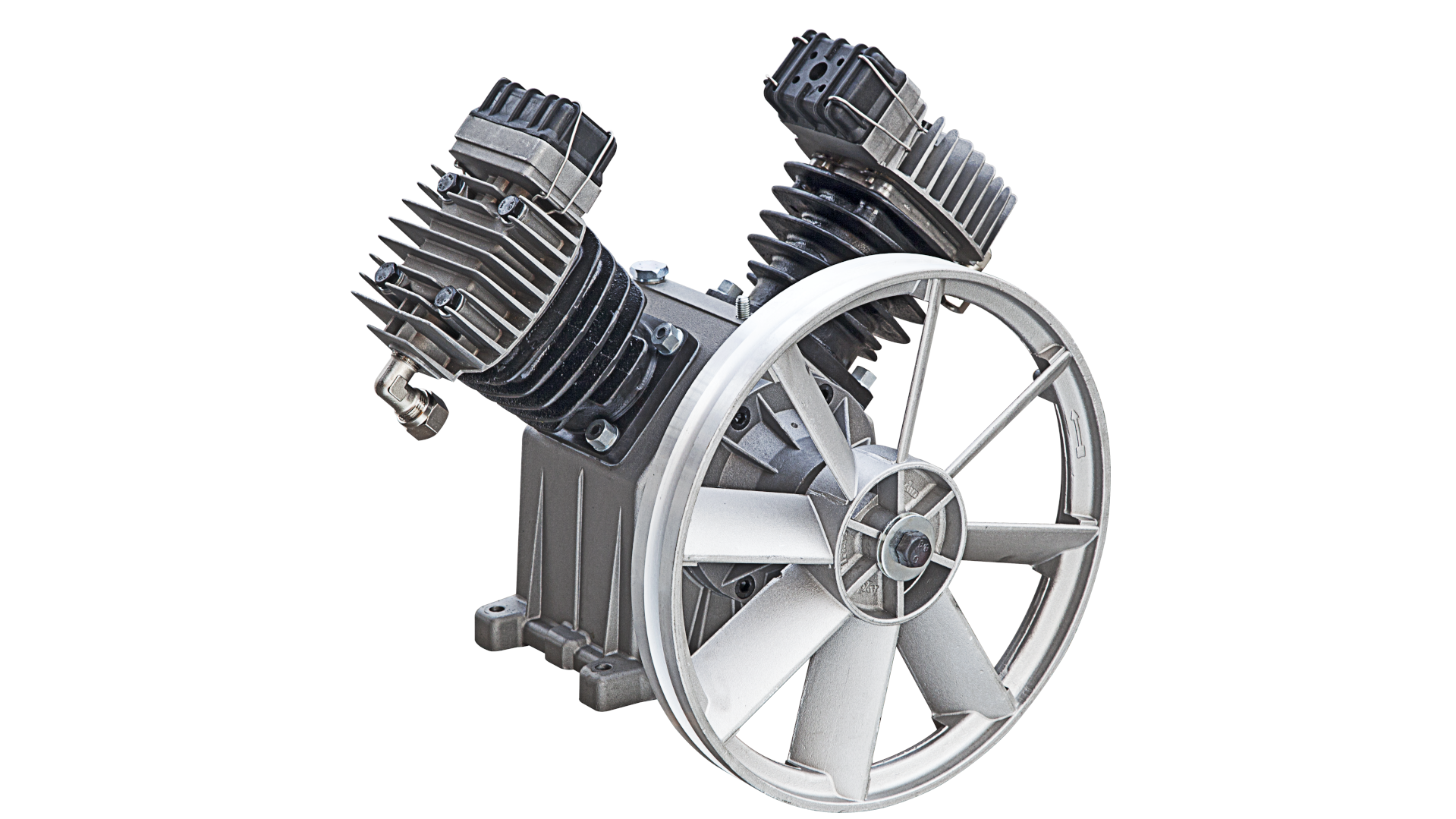

Aydın Trafo piston crankcases are entirely produced in-house. High-quality cast crankcases, durable piston groups, cooling coils, and flywheels are standard equipment in this product line. Both single-stage and double-stage piston groups are available.
Technicial Specifications
| Model |
Motor Power |
Air Flow Capacity | Rotation per Minute | Pressure |
| Hp | Lt/dk | RPM | Bar | |
| ATK 11-50 | 1 | 110 | 980 | 8 |
| ATK 21-100 | 1,5 | 210 | 980 | 8 |
| 2 | 275 | 1300 | ||
| ATK 21-220 | 3 | 400 | 980 | 8 |
| 4 | 500 | 1150 | ||
| ATK 21-300 | 5,5 | 760 | 950 | 8 |
| 7,5 | 900 | 1120 | ||
| ATK 21-530 | 10 | 1370 | 900 | 8 |
| ATK 22-220 | 2 | 200 | 980 | 12 |
| ATK 22-300 | 5,5 | 630 | 950 | 12 |
| 7,5 | 800 | 1200 | ||
| ATK 22-530 | 10 | 1225 | 1250 | 12 |
| ATK 22-1000 | 15 | 1730 | 1075 | 12 |
Aydın Trafo Compressor reserves the right to make changes without prior notice.
Standard Features
- Cast crankcase
- Piston group
- Cooling coils
- Air filters
Optional
- Single and double cylinder compressor models
Sectors
- Textile Industry
- Manufacturing Industry
- Automotive Industry
- Food and Beverage Industry
