Single Stage Reciprocating Air Compressor Series

Aydın Trafo Reciprocating Compressors Are the Product of Over 50 Years of Experience!

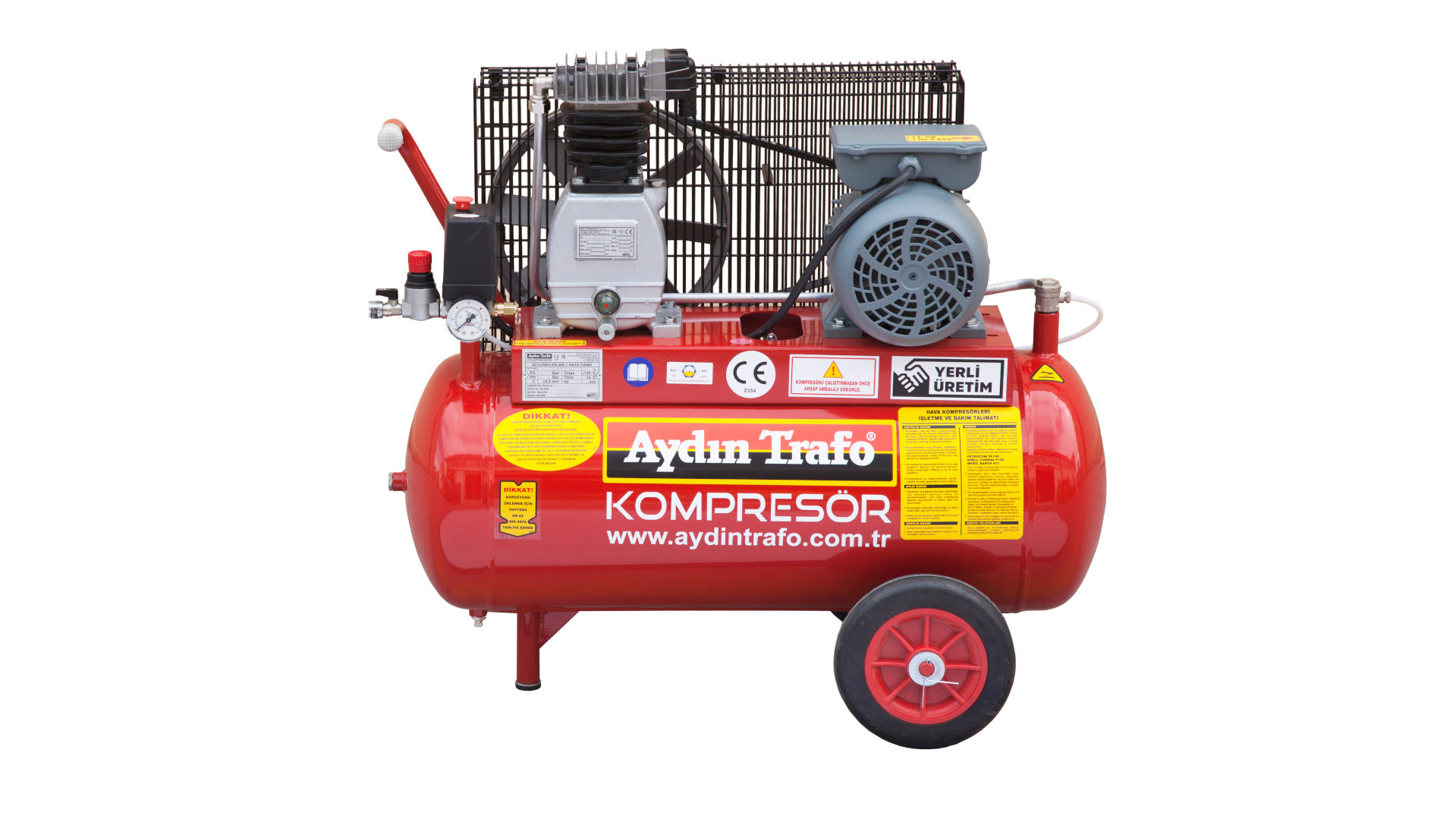

In single-stage piston compressors, air reaches the required pressure after compression with a single cylinder. The maximum output pressure in our single-stage compressors is 8 Bar. We offer both single-cylinder and double-cylinder single-stage compressor models. Our single-stage piston compressors come with built-in air tanks with capacities ranging from 50 liters to 530 liters. Our models offer both single-phase and three-phase power supply options, and with our wheeled portable models, our piston compressors are extremely user-friendly.

Technicial Specifications

Model	Max. Working Pressure	Air Receiver Capacity	Motor Power	Air Flow Capacity	Voltage/Phase	Number of Cylinders	Rotation Per Minute	Dimensions	Weight
Model	Bar	Lt	Hp / kW	Lt/min	V / Ph	Number of Cylinders	RPM	mm	Kg
11-50	8	50	1 HP / 0,75 kW	110	400V / 3Ph	1	980	400 x 782 x 760	60
11-50 M	8	50	1 HP / 0,75 kW	110	230V / 1Ph	1	980	400 x 782 x 760	60
21-100	8	100	1,5 HP / 1,1 kW	210	400V / 3Ph	2	980	555 x 1048 x 853	80
21-100 M	8	100	1,5 HP / 1,1 kW	210	230V / 1Ph	2	980	555 x 1048 x 853	80
21-130	8	130	2 HP / 1,5 kW	275	400V / 3Ph	2	1300	555 x 1200 x 853	94
21-130 M	8	130	2 HP / 1,5 kW	260	230V / 1Ph	2	1250	555 x 1200 x 853	94
21-220	8	200	3 HP / 2,2 kW	400	400V / 3Ph	2	980	450 x 1441 x 928	130
21-220 M	8	200	3 HP / 2,2 kW	360	230V / 1Ph	2	980	450 x 1441 x 928	130
21-300/4	8	300	4 HP / 3 kW	540	400V / 3Ph	2	660	550 x 1690 x 1012	175
21-300/5,5	8	300	5,5 HP / 4 kW	760	400V / 3Ph	2	950	550 x 1690 x 1111	203
21-530/5,5	8	530	5,5 HP / 4 kW	760	400V / 3Ph	2	950	640 x 1881 x 1238	295
21-530/7,5	8	530	7,5 HP / 5,5 kW	900	400V / 3Ph	2	1120	640 x 1881 x 1238	295
21-530/10	8	530	10 HP / 7,5 kW	1370	400V / 3Ph	2	900	640 x 1881 x 1394	384
21-1000/10	8	1000	10 HP / 7,5 kW	1370	400V / 3Ph	2	900	700 x 1320 x 880 (chassis)	247
21-1000/10	8	1000	10 HP / 7,5 kW	1370	400V / 3Ph	2	900	1000 x 1060 x 2300 (Air Receiver)	280

Free air deliveries are measured according to ISO 1217 Annex C standards, with an inlet air temperature of 20°C and an inlet air pressure of 1 bar. Aydın Trafo Compressors reserves the right to make changes without prior notice.

Standard Features

Belt-pulley drive system
400V/50Hz electric motor
CE-certified air tank

Cast crankcase
Pressure regulator
Cooling coils

Optional

Single and double-cylinder compressor models
Compressed air dryer
Compressor design suitable for user electrical supply

Sectors

Textile Industry
Manufacturing Industry
Automotive Industry
Food and Beverage Industry

İlgili Ürünler

Single Stage Reciprocating Air Compressor Series

Reciprocating Compressors;

8 Bar
110 - 1370 lt/min.

More Information

Double Stage Reciprocating Air Compressor Series

Reciprocating Compressors;

12 Bar
200 - 1730 lt/min

More Information

Chassis-Mounted Reciprocating Compressor Series

Reciprocating Compressors;

8 - 12 Bar
200 - 1730 Lt/min

More Information

Piston Groups

Reciprocating Compressors;

8 - 12 Bar
110 - 1730 Lt/min

More Information

Frequently Asked Questions

In piston compressors, atmospheric air is drawn into the cylinder as the piston moves downward. During the upward movement of the piston, the intake valve closes, and the air is compressed. Once the piston reaches the top of its stroke, the compressed air is sufficient to open the discharge valve. The pressurized air is typically stored in an air tank, ready for use. This cycle is repeated with each downward movement of the piston

Our piston compressor models offer both single-stage and two-stage options, reaching a maximum output pressure of 8 bar and 12 bar. First, it is essential to accurately determine the required pressure level to ensure the proper operation of the compressed air equipment. Then, the necessary air capacity should be assessed. Based on this information, the most suitable compressor can be selected from Aydın Trafo Compressor’s range of piston compressor models to meet your specific needs. For consultation and technical support, please feel free to contact us.

You can receive 24/7 technical support from Aydın Trafo Compressor.
