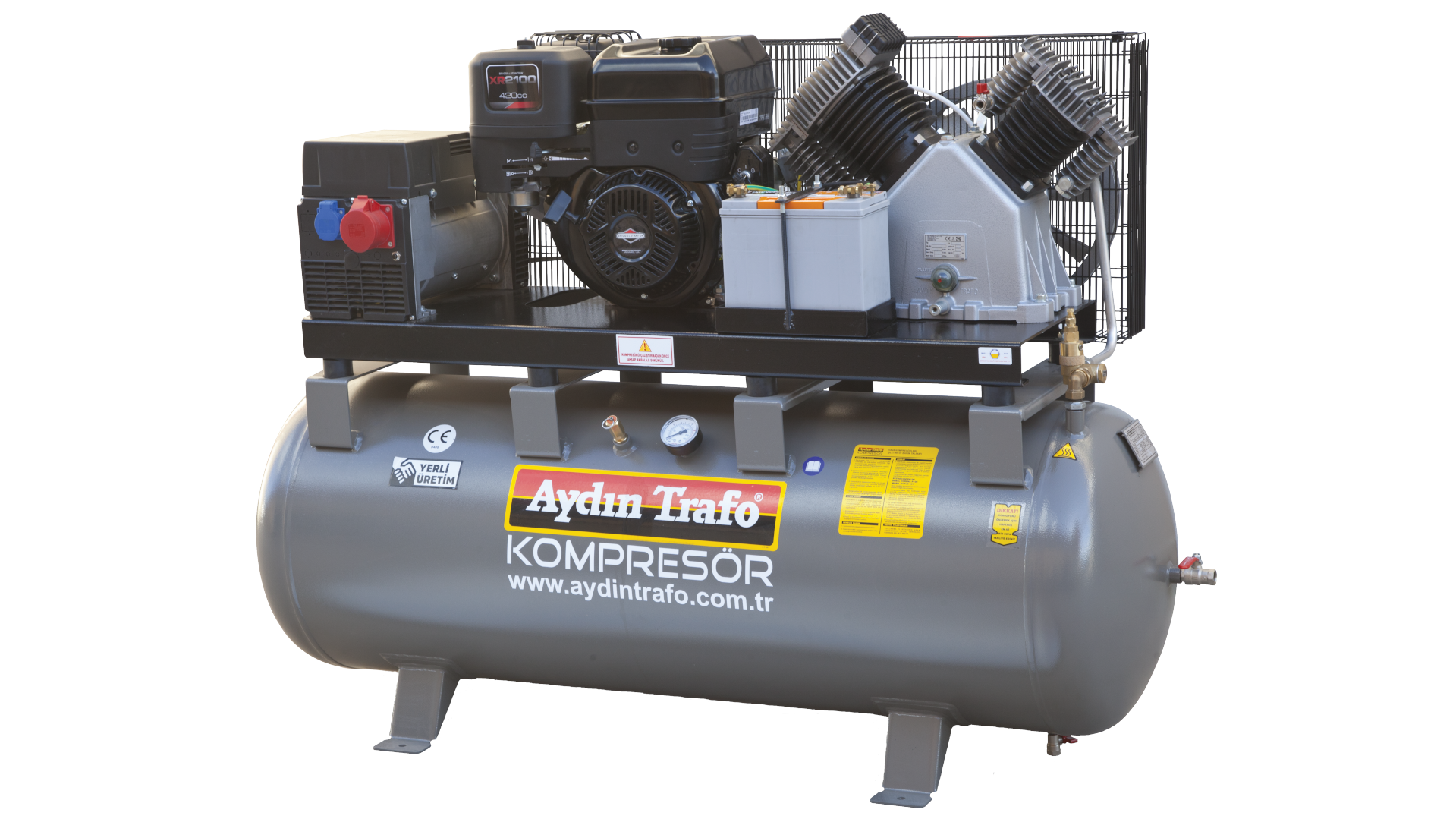

Alternator Reciprocating Compressor Series

Aydın Trafo Reciprocating Compressors Are the Product of Over 50 Years of Experience!

Our alternator compressors are suitable for operation in locations without an electricity supply. With a gasoline engine, these compressors also provide solutions for our customers' electrical energy needs through an integrated alternator. We manufacture compressors that focus on quality, equipped with high-efficiency gasoline engines and alternators, internal CE-certified air tanks, and head units produced in-house, addressing all our customers' needs.

Technicial Specifications

Model	Max Working Pressure	Air Receiver Capacity	Motor Power	Air Flow Capacity	Motor Type	Numeber of Cylinders	Electrical Output Power	Dimensions
	Bar	Lt	Hp	Lt/min			Voltage/Phase/Frequency- Power	mm
22-300 ALT BS	12	300	13	630	Rope-Start/Electric-Start	2	400V Enerji Çıkış : 8,5 kVA–1,5 kW–2 HP	650x1700x1200
							220V Enerji Çıkış : 4 kVA–3 kW–4 HP
22-300 ALT H	12	300	13	630		2	400V Enerji Çıkış : 8,5 kVA–1,5 kW–2 HP	650x1700x1200
							220V Enerji Çıkış : 4 kVA–3 kW–4 HP

Free air deliveries are measured according to ISO 1217 Annex C standards, with an inlet air temperature of 20°C and an inlet air pressure of 1 bar. Aydın Trafo Compressors reserves the right to make changes without prior notice.

Standard Features

Gasoline Engine
Alternator
Belt-Pulley Drive System
CE-Certified Air Tank

Cast Crankcase
Pressure Regulator
Cooling Coils

Optional

Compressed Air Dryer
Compressor Design Suitable for User Electrical Supply
Options for Rope-Start and Electric-Start Gasoline Engines

Sectors

Textile Industry
Manufacturing Industry
Automotive Industry
Food and Beverage Industry

More Information

Frequently Asked Questions

In piston compressors, atmospheric air is drawn into the cylinder as the piston moves downward. During the upward movement of the piston, the intake valve closes, and the air is compressed. Once the piston reaches the top of its stroke, the compressed air is sufficient to open the discharge valve. The pressurized air is typically stored in an air tank, ready for use. This cycle is repeated with each downward movement of the piston.

Our piston compressor models offer both single-stage and two-stage options, reaching a maximum output pressure of 8 bar and 12 bar. First, it is essential to accurately determine the required pressure level to ensure the proper operation of the compressed air equipment. Then, the necessary air capacity should be assessed. Based on this information, the most suitable compressor can be selected from Aydın Trafo Compressor’s range of piston compressor models to meet your specific needs. For consultation and technical support, please feel free to contact us.

You can receive 24/7 technical support from Aydın Trafo Compressor.
