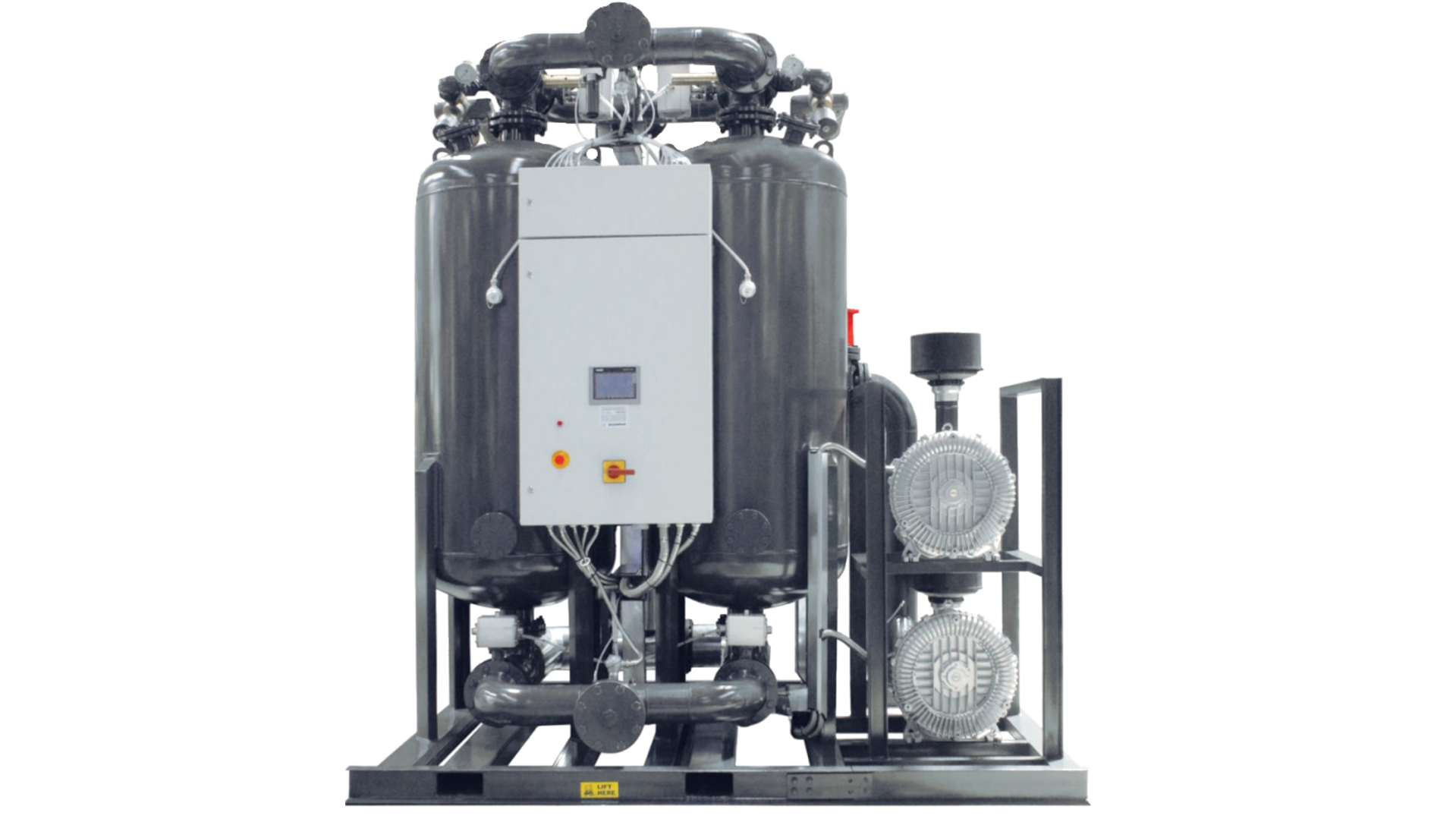

Heated Desiccant Dryers
In heated chemical dryers, drying elements are regenerated through a high-temperature heating system managed by advanced controls, enhancing energy efficiency. These dryers remove moisture from compressed air to reach dew points as low as -40 °C (or optionally -70 °C), ensuring a clean air output. With superior control, high drying capacity, and robust durability, the TMP-HKBP series heated chemical dryers are the perfect solution for industries requiring reliable, dry air.
Technicial Specifications
| Model | Capacity | Max. Working Pressure | Pressure Drop | Connections | Voltage/Phase | Dew Point | Max. Inlet Temperature | Power Consumption | Dimensions |
| Length x Width x Height | |||||||||
| m³/min | Bar | mBar | V / Ph | °C | °C | kW | mm | ||
| TMP-HKBP 850 | 14,17 | 10 | ≤130 | 2" | 400V / 3Ph | -40 | 45 | 9,4 | 1290 x 1180 x 2299 |
| TMP-HKBP 1000 | 16,67 | 10 | ≤130 | 2" | 400V / 3Ph | -40 | 45 | 9,4 | 1200 x 1310 x 2415 |
| TMP-HKBP 1250 | 20,83 | 10 | ≤130 | DN80 | 400V / 3Ph | -40 | 45 | 12 | 1610 x 1270 x 2468 |
| TMP-HKBP 1500 | 25,00 | 10 | ≤130 | DN80 | 400V / 3Ph | -40 | 45 | 12 | 1610 x 1270 x 2563 |
| TMP-HKBP 1800 | 30,00 | 10 | ≤130 | DN80 | 400V / 3Ph | -40 | 45 | 14,5 | 1563 x 1515 x 2479 |
| TMP-HKBP 2200 | 36,67 | 10 | ≤130 | DN80 | 400V / 3Ph | -40 | 45 | 17,5 | 1563 x 1455 x 2789 |
| TMP-HKBP 2700 | 45,00 | 10 | ≤130 | DN80 | 400V / 3Ph | -40 | 45 | 21,4 | 1615 x 1514 x 2836 |
| TMP-HKBP 3200 | 53,33 | 10 | ≤130 | DN100 | 400V / 3Ph | -40 | 45 | 21,4 | 1710 x 1660 x 3054 |
| TMP-HKBP 3600 | 60,00 | 10 | ≤130 | DN100 | 400V / 3Ph | -40 | 45 | 31,1 | 1710 x 1660 x 3268 |
| TMP-HKBP 4400 | 73,33 | 10 | ≤130 | DN100 | 400V / 3Ph | -40 | 45 | 36,1 | 1975 x 2492 x 2910 |
| TMP-HKBP 5000 | 83,33 | 10 | ≤130 | DN125 | 400V / 3Ph | -40 | 45 | 39,4 | 2045 x 2560 x 3382 |
| TMP-HKBP 6300 | 105,00 | 10 | ≤130 | DN150 | 400V / 3Ph | -40 | 45 | 49,4 | 2090 x 2963 x 3328 |
| TMP-HKBP 7200 | 120,00 | 10 | ≤130 | DN150 | 400V / 3Ph | -40 | 45 | 49,4 | 2020 x 3363 x 3047 |
| TMP-HKBP 8800 | 146,67 | 10 | ≤130 | DN150 | 400V / 3Ph | -40 | 45 | 72,3 | 2020 x 3363 x 3341 |
| TMP-HKBP 10800 | 180,00 | 10 | ≤130 | DN200 | 400V / 3Ph | -40 | 45 | 78,7 | 2492 x 3481 x 3765 |
Aydın Trafo Compressor reserves the right to make changes without prior notice.
Standard Features
- Dryer element heating system
- -40 °C Dew point
- Moisture-absorbing activated alumina
- Drain and control valves
- PLC controller
- Industrial control panel
- Regeneration system
Optional
- -70 °C Dew point
Sectors
- Pharmaceutical Industry
- Food and Beverage Industry
- Chemical Industry
- Aerospace Industry
