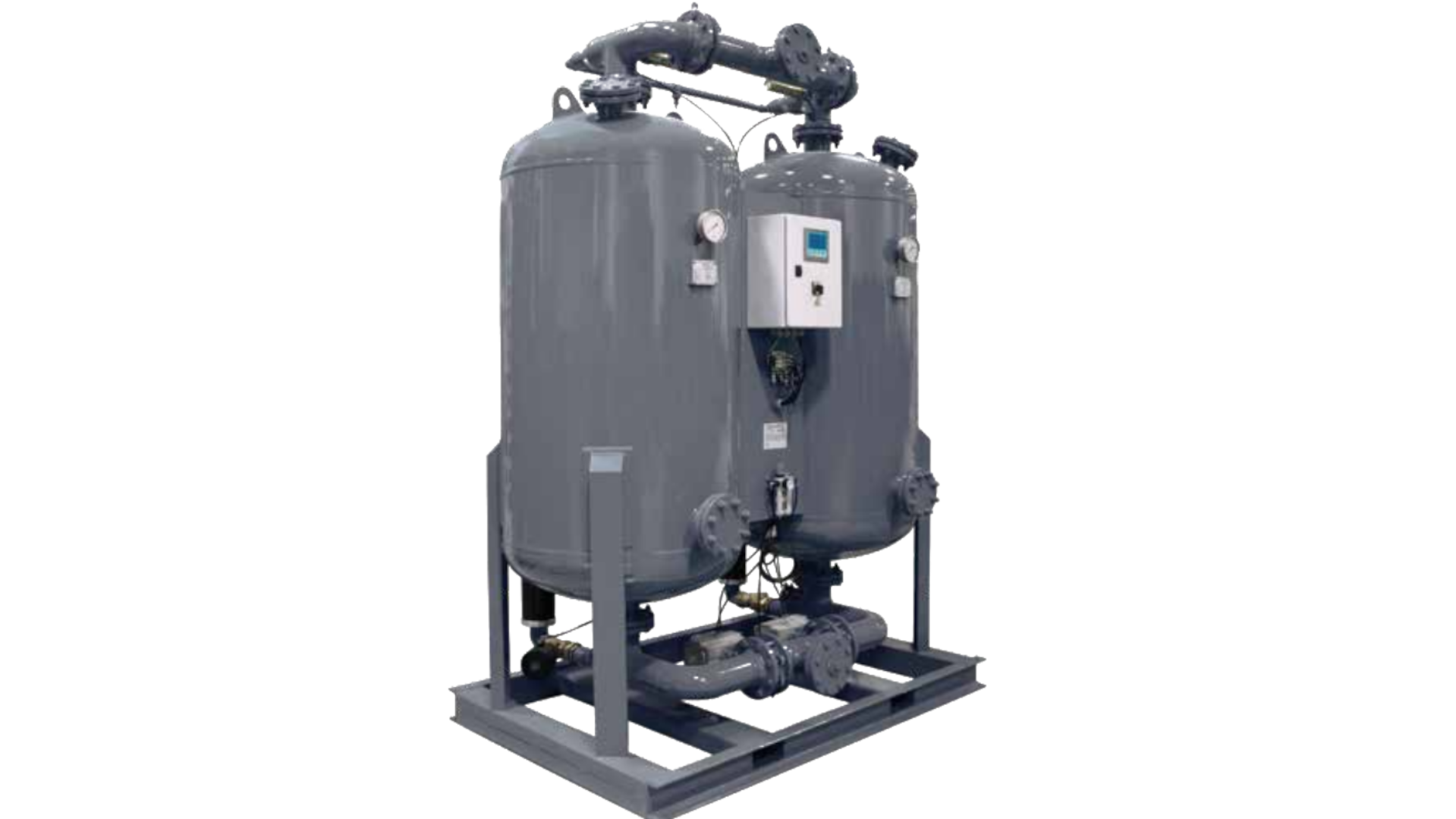

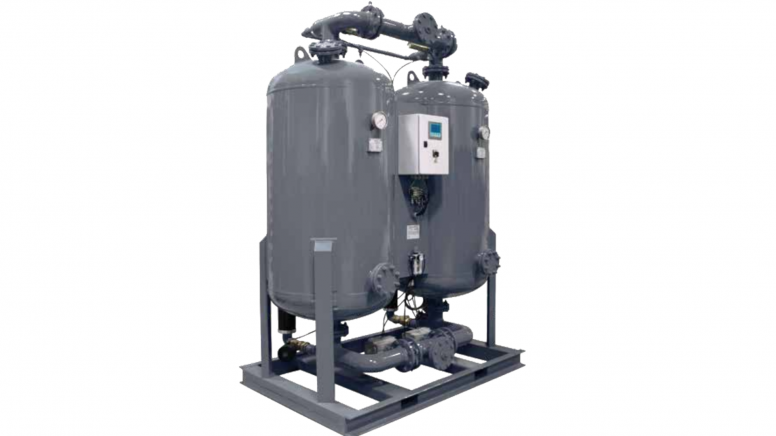

Heatless Desiccant Dryer
Dry air is crucial for critical applications. The TMP-HKDA Series chemical dryers stabilize compressed air dew points at -40 °C (with an optional -70 °C) while ensuring minimal pressure drop. Equipped with pre-filtration outlet filters, these dryers achieve enhanced efficiency extended operational life. In heatless models, desiccant regeneration is accomplished by utilizing the dry air generated at atmospheric pressure. With a long service life, high drying capacity, low pressure drop, TMP-HKDA Heatless Chemical Dryers deliver outstanding performance.
Technicial Specifications
| Model | Capacity | Max. Working Pressure | Pressure Drop | Connections | Voltage/Phase | Dew Point | Max Inlet Temperature | Dimensions | Weight |
| Length x Width x Height | |||||||||
| m³/min | Bar | mBar | V / Ph | °C | °C | mm | Kg | ||
| TMP-HKDA 130 | 2,17 | 10 | ≤130 | 1" | 230V / 1Ph | -40 | 50 | 600 x 814 x 1312 | 160 |
| TMP-HKDA 185 | 3,08 | 10 | ≤130 | 1" | 230V / 1Ph | -40 | 50 | 600 x 808 x 1566 | 180 |
| TMP-HKDA 250 | 4,17 | 10 | ≤130 | 1" | 230V / 1Ph | -40 | 50 | 760 x 772 x 1580 | 200 |
| TMP-HKDA 300 | 5,00 | 10 | ≤130 | 1 1/2" | 230V / 1Ph | -40 | 50 | 690 x 900 x 1558 | 250 |
| TMP-HKDA 360 | 6,00 | 10 | ≤130 | 1 1/2" | 230V / 1Ph | -40 | 50 | 690 x 900 x 1558 | 250 |
| TMP-HKDA 440 | 7,33 | 10 | ≤130 | 1 1/2" | 230V / 1Ph | -40 | 50 | 698 x 900 x 1759 | 340 |
| TMP-HKDA 575 | 9,58 | 10 | ≤130 | 1 1/2" | 230V / 1Ph | -40 | 50 | 680 x 900 x 1991 | 500 |
| TMP-HKDA 680 | 11,33 | 10 | ≤130 | 2" | 230V / 1Ph | -40 | 50 | 680 x 960 x 2216 | 535 |
| TMP-HKDA 850 | 14,17 | 10 | ≤130 | 2" | 230V / 1Ph | -40 | 50 | 857 x 1016 x 2277 | 750 |
| TMP-HKDA 1000 | 16,67 | 10 | ≤130 | 2" | 230V / 1Ph | -40 | 50 | 1010 x 1075 x 2386 | 755 |
| TMP-HKDA 1250 | 20,83 | 10 | ≤130 | DN80 | 230V / 1Ph | -40 | 50 | 1100 x 1294 x 2413 | 1000 |
| TMP-HKDA 1500 | 25,00 | 10 | ≤130 | DN80 | 230V / 1Ph | -40 | 50 | 1010 x 1300 x 2547 | 1050 |
| TMP-HKDA 1800 | 30,00 | 10 | ≤130 | DN80 | 230V / 1Ph | -40 | 50 | 1110 x 1513 x 2479 | 1215 |
| TMP-HKDA 2200 | 36,67 | 10 | ≤130 | DN80 | 230V / 1Ph | -40 | 50 | 1110 x 1460 x 2793 | 1550 |
| TMP-HKDA 2700 | 45,00 | 10 | ≤130 | DN80 | 230V / 1Ph | -40 | 50 | 1252 x 1533 x 2831 | 1890 |
| TMP-HKDA 3200 | 53,33 | 10 | ≤130 | DN100 | 230V / 1Ph | -40 | 50 | 1212 x 1653 x 3054 | 2240 |
| TMP-HKDA 3600 | 60,00 | 10 | ≤130 | DN100 | 230V / 1Ph | -40 | 50 | 1210 x 1653 x 3268 | 2330 |
| TMP-HKDA 4400 | 73,33 | 10 | ≤130 | DN100 | 230V / 1Ph | -40 | 50 | 1535 x 1905 x 2910 | 3000 |
| TMP-HKDA 5000 | 83,33 | 10 | ≤130 | DN150 | 230V / 1Ph | -40 | 50 | 1714 x 1843 x 3382 | 3180 |
| TMP-HKDA 6300 | 105,00 | 10 | ≤130 | DN150 | 230V / 1Ph | -40 | 50 | 1693 x 2114 x 3328 | 3450 |
| TMP-HKDA 7200 | 120,00 | 10 | ≤130 | DN150 | 230V / 1Ph | -40 | 50 | 1795 x 2518 x 3047 | 3600 |
| TMP-HKDA 8800 | 146,67 | 10 | ≤130 | DN150 | 230V / 1Ph | -40 | 50 | 1795 x 2518 x 3341 | 3850 |
| TMP-HKDA 10800 | 180,00 | 10 | ≤130 | DN200 | 230V / 1Ph | -40 | 50 | 1875 x 2583 x 3747 | 4200 |
| TMP-HKDA 12500 | 208,33 | 10 | ≤130 | DN200 | 230V / 1Ph | -40 | 50 | 1935 x 2545 x 4175 | 6470 |
Aydın Trafo Compressor reserves the right to make changes without prior notice.
Standard Features
- -40 °C Dew Point
- Activated alumina
- Drain and control valves
- PLC Controller
- Industrial control panel
- Regeneration system
Optional
- -70 °C Dew point
Sectors
- Pharmaceutical Industry
- Food and Beverage Industry
- Chemical Industry
- Aerospace Industry
